Full-color and full-resolution graphics from the pages of QRP Homebrewer
QHB #7 -- December 2001
Click
on the desired article below to view its graphics

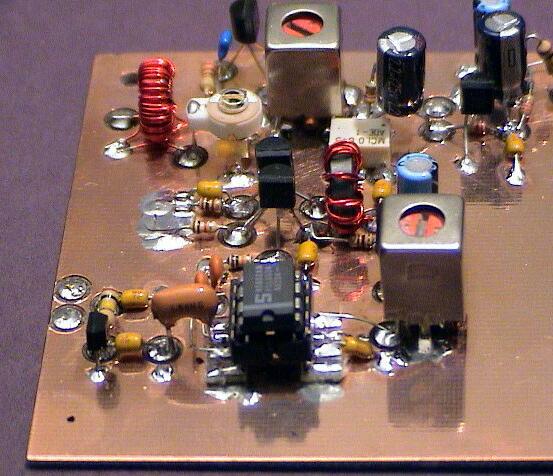

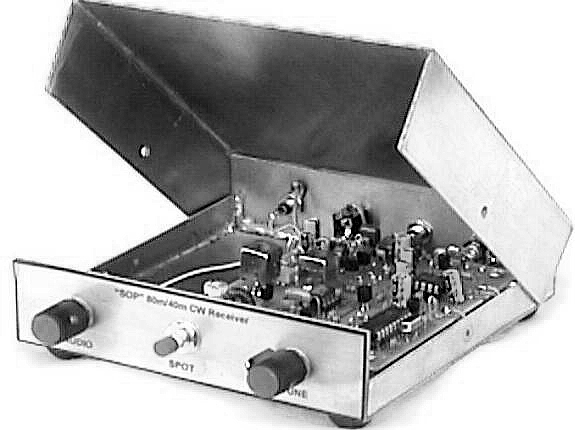

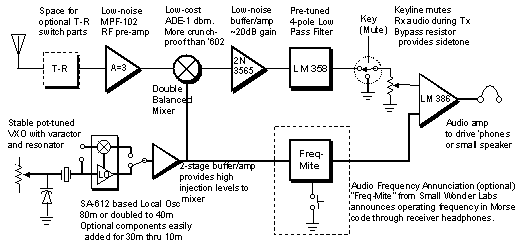

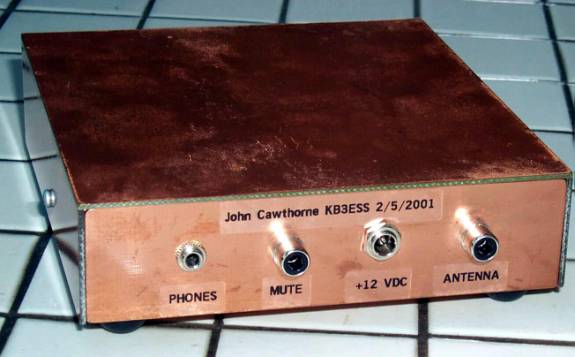

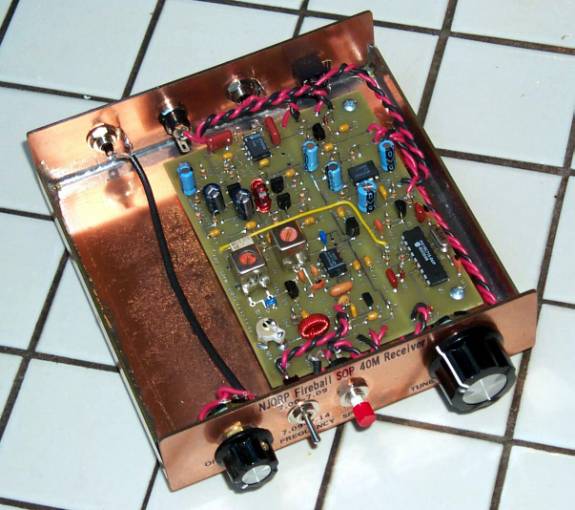

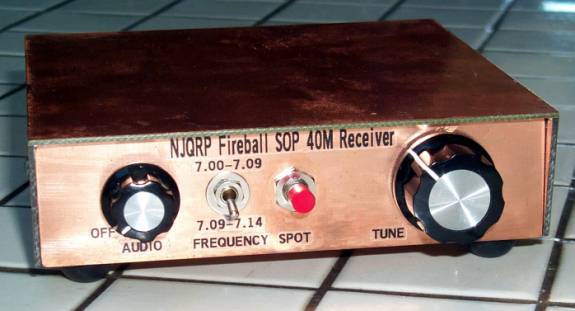

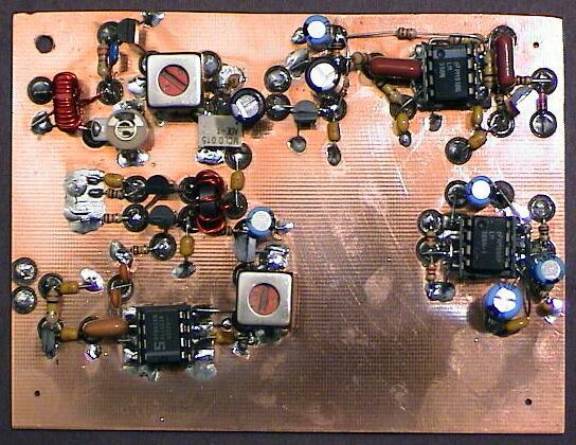

| Build the SOP Receiver by Joe Everhart, N2CX |
|
|
|
|
|
|
|
Click here

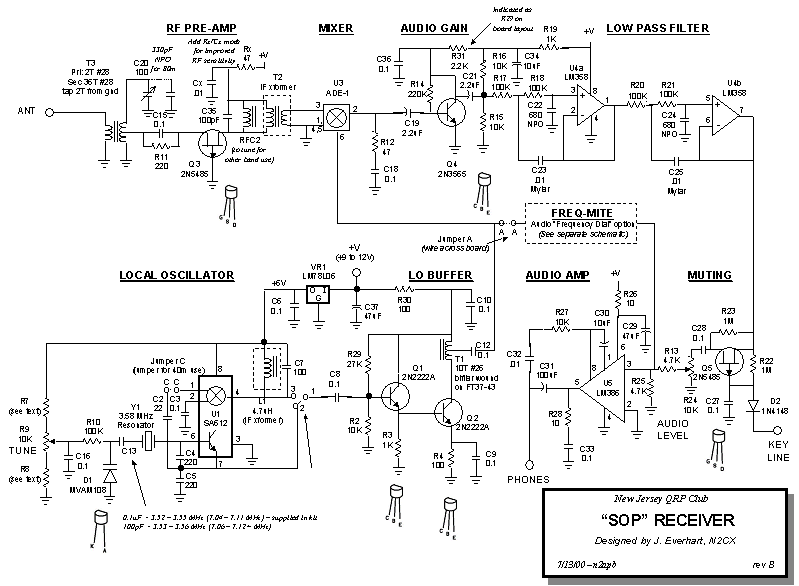

to view (or download) full-resolution PDF schematic file |
