Full-color and/or full-resolution graphics from the pages of QRP Homebrewer
QHB #6 -- August 2001
|
The Lowly Doublet ... Or Is It? by Fred Bonavita, K5QLF |

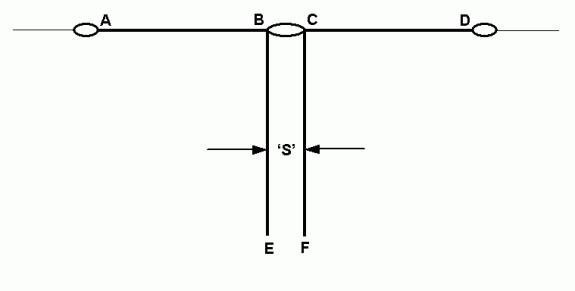

Figure 1: A basic doublet antenna. The flat-top sides AB and CD are equal, as are the feeders BE and CF. Spacing ‘S’ is explained in the text.

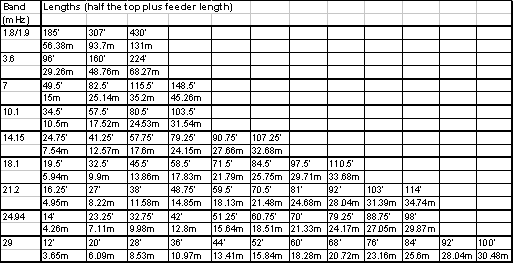

Lengths to avoid in multiband doublets with
tuned feeders |
