QHB #4 -- Summer 2000



The Boy Scout Regen Receiver, by George Heron, N2APB

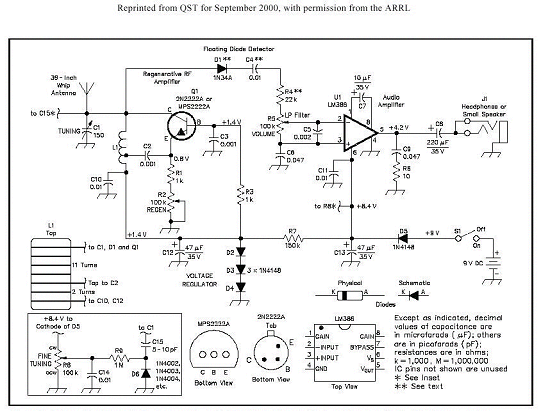

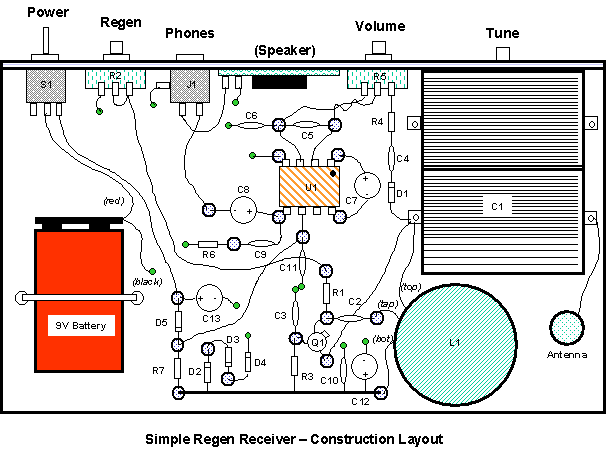

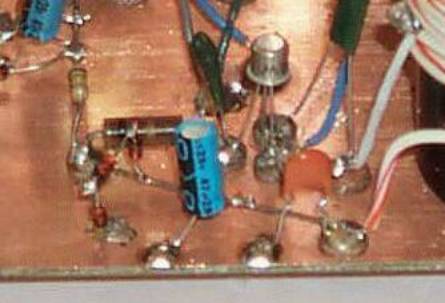

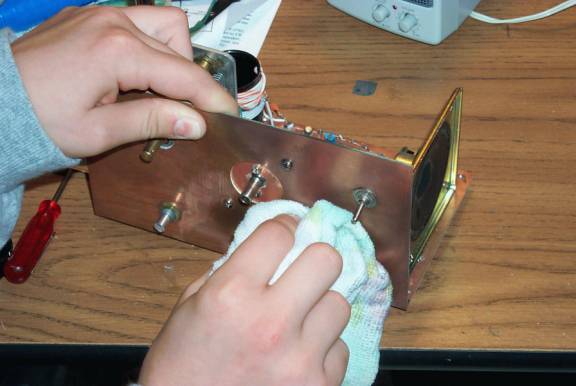

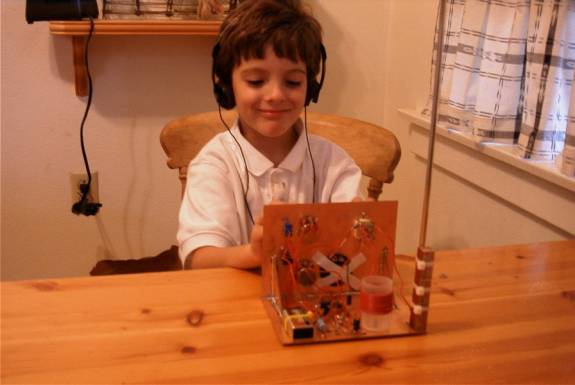

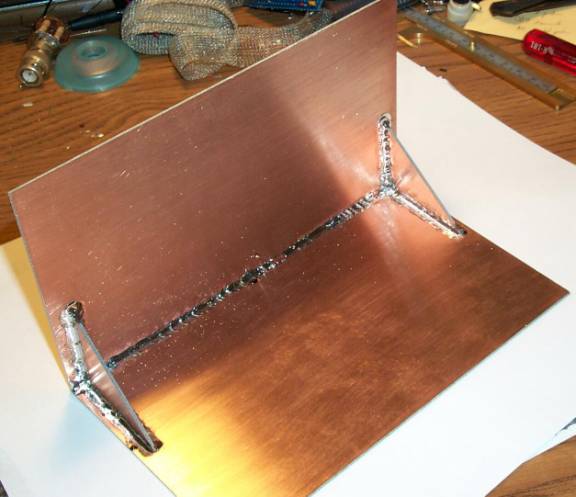

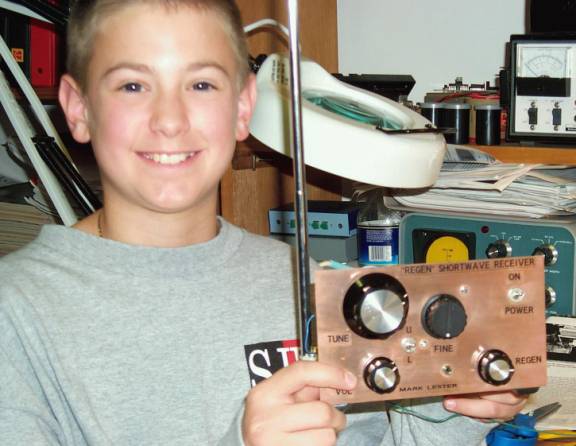

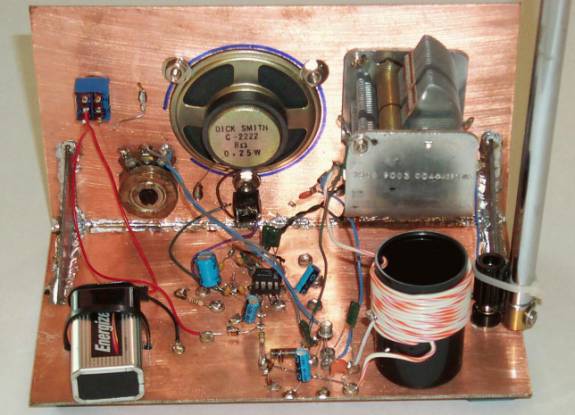

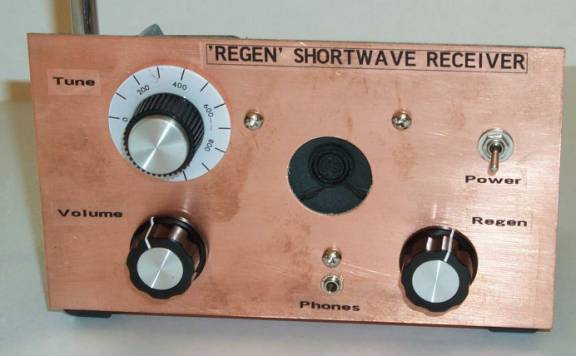

A speaker was mounted in the first unit. In later units, we moved the speaker to the side and put a small variable cap in place to act as bandspread control. Rear view of the Regen showing open-chassis Manhattan-style construction Close-up of components and "island pads"   Front panel and chassis "base" are soldered together and braced with angle pieces The scout learning some soldering basics while constructing his Regen Cleaning and polishing the front panel in preparation for the labels and Krylon spray finish (reduces surface oxidation) Note the speaker now mounted on the side (screwed to the angle brace) and small air variable cap for "bandspread" mounted in place of the speaker hole on the front panel. Another youngster enjoys the Regen he built
