QHB #2 -- Winter 2000



Homebrew Chassis and Panel Labels, by Ed Roswell, K2MGM

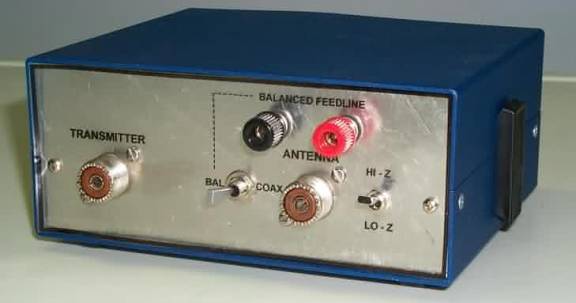

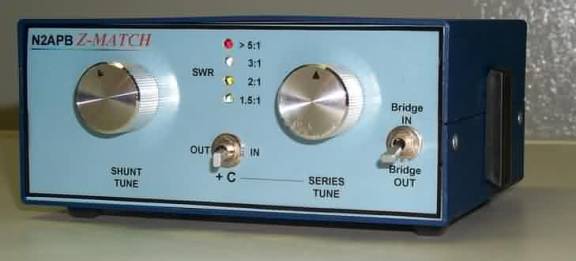

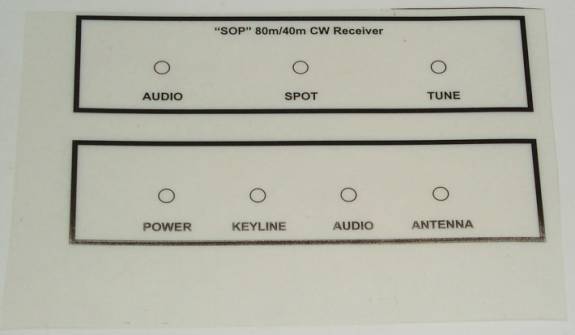

Here’s a view of the results from the "N2APB Transparency" label-making method.  Note how the clear acetate transparency material goes across the entire panel  (reflections from the knobs), giving a professional finished look. Same approach for the rear panel labels Here's the acetate labels for the SOP Receiver ... use your ink jet printer with special transparency material from your favorite printer supplies store
